MOA Series for Exporting
2019-06-15 15:24 Clicks: 6713

Product introduction

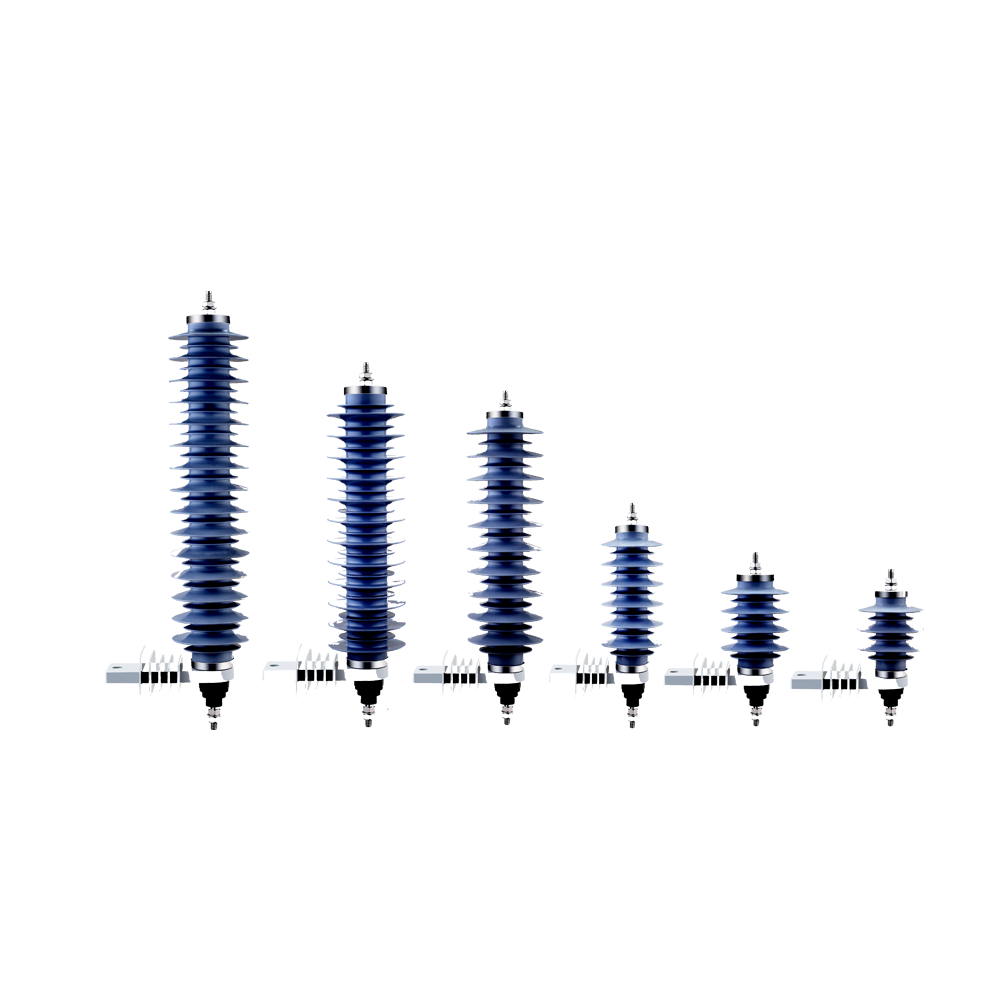

- Polymer-Housed Arresters 9-24kV/5kA, 15-60kV/10kA (KEMA TESTED)

- Polymer-Housed Arresters up to 220kV

- Porcelain-Housed Arresters up to 500kV

- Tested according to IEC 60099-4

- Certified to ISO 9001 and ISO 14001


Product Details



Table 1  The technical parameters of 5kA seires polymer housed MOA for export


Type designation

Unit

HY5W-3/8.5

HY5W-6/17

HY5W-9/25.5

HY5W-12/34

HY5W-15/42.5

HY5W-18/51

1

Rated Voltage

kV

3

6

9

12

15

18

2

Continuous   operating   voltage

kV

2.4

4.8

7.2

9.6

12

14.4

3

Nominal discharge current

kA

5

5

5

5

5

5

4

Min. reference voltage at   D.C. 1mA

kV

4.3

8.6

13

17.2

21.5

25.8

5

Lightning   impulse   residual voltage 8/20 µs

kV

8.5

17

25.5

34

42.5

51

6

Steep   current impulse   residual voltage 1/10 µs

kV

9.8

19.6

29.3

39.1

48.9

58.7

7

Switching   impulse   residual voltage 30/60 µs

kV

7.2

14.4

21.7

28.9

36.0

43.3

8

2ms   rectangular   current withstand

A

75

75

75

75

75

75

9

4/10   µs high current   impulse withstand

kA

65

65

65

65

65

65

10

Arrester   number of   sheds

PCS

1

2

3

4

5

6

11

Creepage     distance

mm

118

213

308

403

498

593

12

Arrester     height

mm

138±5

167±5

196±5

225±5

254±5

283±5

13

Body     weight

Kg

0.50

0.68

0.90

1.12

1.33

1.53



Table 2  The technical parameters of 5kA seires polymer housed MOA for export


Type designation

Unit

HY5W-21/59.5

HY5W-24/68

HY5W-27/76.5

HY5W-30/85

HY5W-33/93.5

HY5W-36/102

1

Rated Voltage

kV

21

24

27

30

33

36

2

Continuous   operating   voltage

kV

16.8

19.2

21.6

24

26.4

28.8

3

Nominal discharge current

kA

5

5

5

5

5

5

4

Min. reference voltage at   D.C. 1mA

kV

30.1

34.4

38.7

43

47.3

51.6

5

Lightning   impulse   residual voltage 8/20 µs

kV

59.5

68

76.5

85

93.5

102

6

Steep   current impulse   residual voltage 1/10 µs

kV

68.4

78.2

88

98

108

117

7

Switching   impulse   residual voltage 30/60 µs

kV

50.5

57.8

65

72.2

79.5

86.7

8

2ms   rectangular   current withstand

A

75

75

75

75

75

75

9

4/10   µs high current   impulse withstand

kA

65

65

65

65

65

65

10

Arrester   number of   sheds

PCS

7

8

9

9

10

10

11

Creepage     distance

mm

688

783

878

878

973

973

12

Arrester     height

mm

312±5

341±5

370±5

370±5

399±5

399±5

13

Body   weight

Kg

1.62

1.94

2.10

2.12

2.43

2.45



Table 3  The technical parameters of 10kA seires polymer housed MOA for export


Type designation

Unit

HY10W-3/8.5

HY10W-6/17

HY10W-9/25.5

HY10W-12/34

HY10W-15/42.5

HY10W-18/51

1

Rated Voltage

kV

3

6

9

12

15

18

2

Continuous   operating   voltage

kV

2.4

4.8

7.2

9.6

12

14.4

3

Nominal discharge current

kA

10

10

10

10

10

10

4

Min. reference voltage at   D.C. 1mA

kV

4.3

8.6

13

17.2

21.5

25.8

5

Lightning   impulse   residual voltage 8/20 µs

kV

8.5

17

25.5

34

42.5

51

6

Steep   current impulse   residual voltage 1/10 µs

kV

9.8

19.6

29.3

39.1

48.9

58.7

7

Switching   impulse   residual voltage 30/60 µs

kV

7.2

14.4

21.7

28.9

36.0

43.3

8

2ms   rectangular   current withstand

A

350

350

350

350

350

350

9

4/10   µs high current   impulse withstand

kA

100

100

100

100

100

100

10

Arrester   number of   sheds

PCS

1

2

3

4

5

6

11

Creepage     distance

mm

118

213

308

403

498

593

12

Arrester     height

mm

138±5

167±5

196±5

225±5

254±5

283±5

13

Body     weight

Kg

0.80

1.10

1.40

1.50

1.79

2.15



Table 4  The technical parameters of 10kA seires polymer housed MOA for export


Type designation

Unit

HY10W-21/59.5

HY10W-24/68

HY10W-27/76.5

HY10W-30/85

HY10W-33/93.5

HY10W-36/102

1

Rated Voltage

kV

21

24

27

30

33

36

2

Continuous   operating   voltage

kV

16.8

19.2

21.6

24

26.4

28.8

3

Nominal discharge current

kA

10

10

10

10

10

10

4

Min. reference voltage at   D.C. 1mA

kV

30.1

34.4

38.7

43

47.3

51.6

5

Lightning   impulse   residual voltage 8/20 µs

kV

59.5

68

76.5

85

93.5

102

6

Steep   current impulse   residual voltage 1/10 µs

kV

68.4

78.2

88

98

108

117

7

Switching   impulse   residual voltage 30/60 µs

kV

50.5

57.8

65

72.2

79.5

86.7

8

2ms   rectangular   current withstand

A

350

350

350

350

350

350

9

4/10   µs high current impulse   withstand

kA

100

100

100

100

100

100

10

Arrester   number of   sheds

PCS

7

8

9

10

11

12

11

Creepage     distance

mm

688

783

878

973

1068

1163

12

Arrester     height

mm

312±5

341±5

370±5

399±5

428±5

457±5

13

Body   weight

Kg

2.45

2.74

2.76

3.34

3.45

3.47

Table 5  The technical parameters of 10kA seires polymer housed MOA for export


Type designation

Unit

HY10W-42/119

HY10W-45/127.5

HY10W-60/170

Y10W-120/325

1

Rated Voltage

kV

42

45

60

120

2

Continuous   operating   voltage

kV

33.6

36

48

96

3

Nominal discharge current

kA

10

10

10

10

4

Min. reference voltage at   D.C. 1mA

kV

60.2

64.5

86

175

5

Lightning   impulse   residual voltage 8/20 µs

kV

119

127.5

170

325

6

Steep   current impulse   residual voltage 1/10 µs

kV

136.8

146.5

195.5

356

7

Switching   impulse   residual voltage 30/60 µs

kV

101.2

108.5

144.5

267

8

2ms   rectangular   current withstand

A

350

350

350

600

9

4/10   µs high current   impulse withstand

kA

100

100

100

100

10

Arrester   number of   sheds

PCS

13

14

15

23

11

Creepage     distance

mm

1258

1353

1448

4060

12

Arrester     height

mm

486±5

515±5

544±5

1734

13

Body     weight

Kg

4.36

4.50

5.66

182
