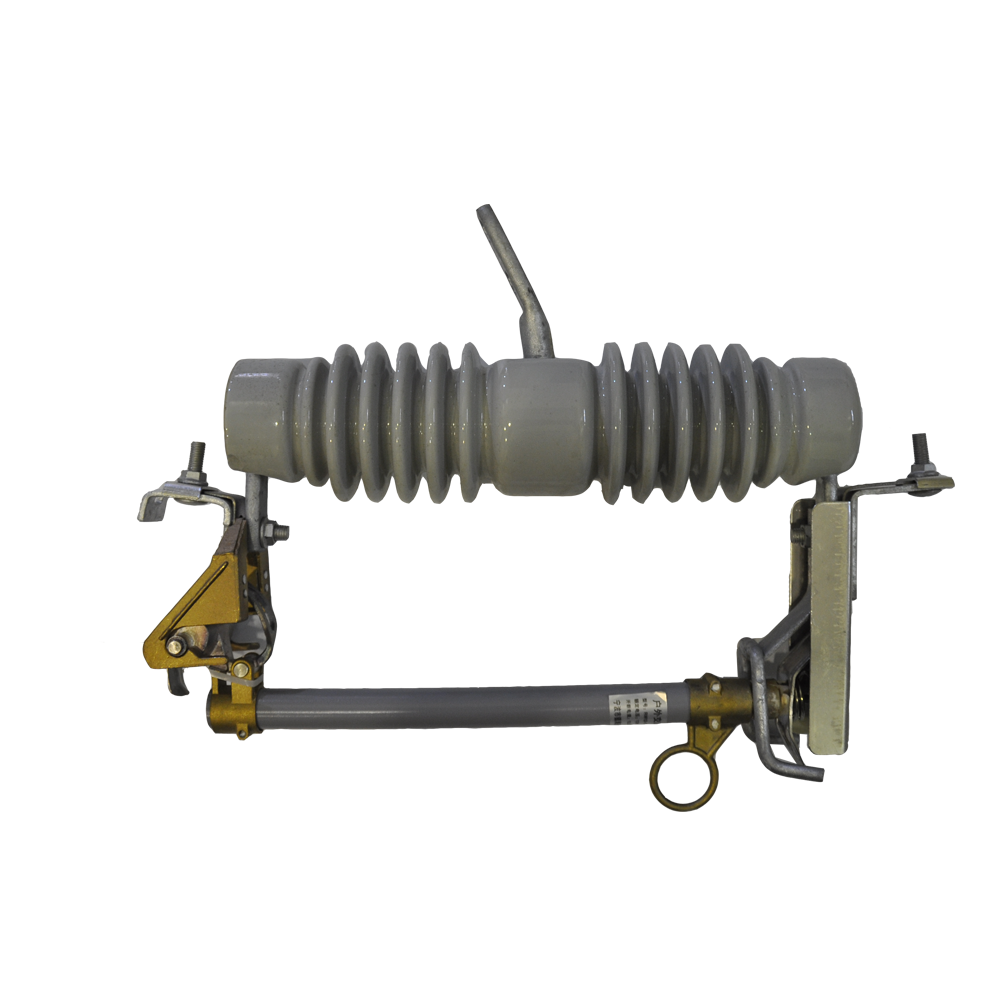

Fuse Cut-out
  • Fuse Cut-out
Fuse Cut-out
2019-06-15 15:57 Clicks: 1945

Product introduction

Fuse Cut-out of outdoor is used for short circuit overload protection of 10kV~35kV,50HZ~60HZ transmission line and Distribution transformer in the power system. The fuse tube is a kind of steel paper with the good breaking capacity. The mounting plate is designed as lengthening, in order to install on the line directly without the need for additional connecting equipment. The product is small size, light weight, not easy to damage, easy to transport and installation.


Product Details



The Parameters of Fuse Cut-out



Type

Rated   voltage

(kV)

Rated   Current

(A)

Rated   breaking current

(kA)

Power-Frequency

Dry/wet withstand voltage

kV

Weight

Kg

Dimensions

(mm)

HRW12-12/100

12

100

6.3

42/34

3.9

490×360×100

HRW12-12/200

12

200

12.5

42/34

4.0

490×360×100

RW12-12/100

12

100

6.3

42/34

6.2

500×380×96

RW12-12/200

12

200

12.5

42/34

6.3

500×380×96
