Metal Oxide Varistor
  • Metal Oxide Varistor
  • 123648
  • 123648
Metal Oxide Varistor
2019-06-05 15:45 Clicks: 5701

Product introduction

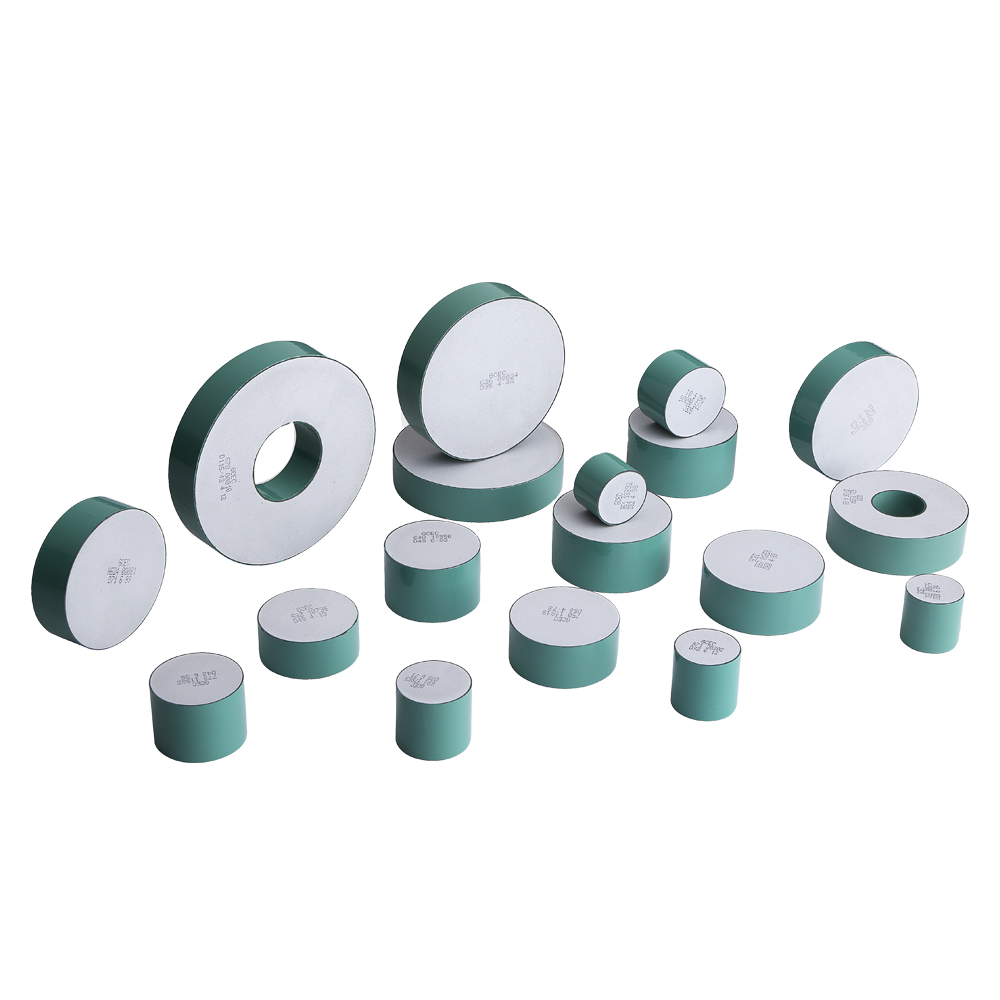

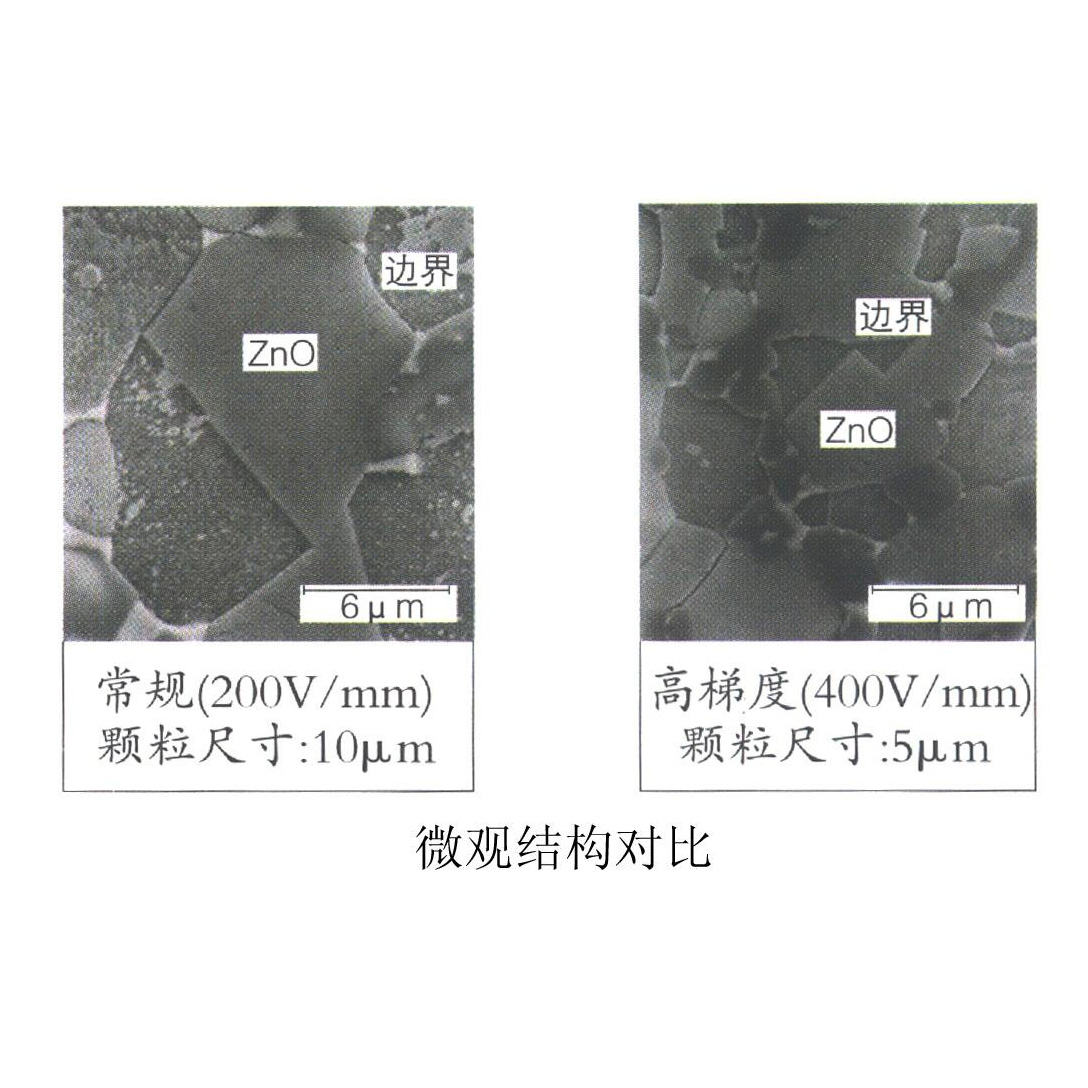

MOV is the core element of metal oxide arrester. Its performance directly determines the performance of arrester. Based on the quality management policy of  ”quality first, pursuit of excellence”, GCEC has been making continuous technical improvement, equipment introduction and process improvement since the production of MOV in 1994. At present, the production capacity of MOV and quality are at the leading level in China.


1.Production capacity of MOV: The diameter of MOV produced is 28 ~136mm, and about 8 million pieces of MOV were  produced every year.

2.Quality assurance: GCEC uses increasingly perfect quality management system to control MOV.

3.Standard: according to IEC60099-4.

.


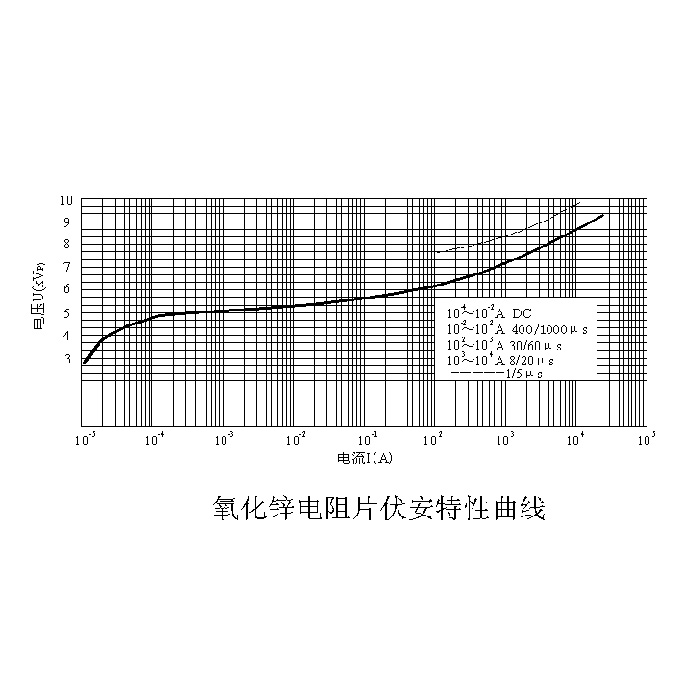

Product Details



Parameters for MOV



Parameters/Type

D28H30

D30H29

Φ32×21

Φ32×25

Φ32×31

Φ35×3

Φ35×6

Φ35×25

Φ35×31

Diameter,mm

28±0.5

29.8±0.5

31.2±0.5

31.2±0.5

31.2±0.5

34.6±0.5

34.6±0.5

34.6±0.5

34.6±0.5

Height,mm

30±1

29±1

21±1

25±1

31±1

3±0.3

6±0.3

25±1

31±1

Rated voltage Ur,kV

4.50

4.50

3.00

3.50

4.50

0.28

0.50

3.50

4.50

UMCOV,kV,r.m.s.

3.60

3.60

2.40

2.85

3.60

0.24

0.42

2.85

3.60

U1mA D.C.,kV

6.80±0.3

6.50±0.3

4.50±0.3

5.30±0.3

6.70±0.3

0.70±0.1

1.30±0.1

5.30±0.3

6.70±0.3

Nominal discharge current,In,kA peak

5

5

5

5

5

1.5

1.5

5

5

Residual voltage at In,UreskVpeak

11.35~12.65

12.65

7.4~8.50

9.0~10.0

11.2~12.3

1.30

2.60

8.75~9.80

11.2~12.3

2ms duration current impulse, A

100

100

150

150

150

75

75

150~250

150~250

4/10us high current impulse current,kA

65

65

65

65

65

10~45

10~45

65

65

Applied field,according toIEC 60099-4

5kA for distribution




Parameters/Type

Φ40×21

Φ40×25

Φ40×31

Φ42×21

Φ42×25

Φ42×31

Φ44×25

Diameter,mm

39.5±0.5

39.5±0.5

39.5±0.5

42±0.5

42±0.5

42±0.5

44±0.5

Height,mm

21±1

25±1

31±1

21±1

25±1

31±1

25±1

Rated voltage Ur,kV

3.00

3.50

4.50

3.00

3.50

4.50

3.50

UMCOV,kV,r.m.s.

2.40

2.85

3.60

2.40

2.85

3.60

2.85

U1mA D.C.,kV

4.40±0.3

5.30±0.3

6.70±0.3

4.50±0.3

5.20±0.3

6.70±0.3

5.20±0.3

Nominal discharge current,In,kA peak

10

10

10

10

10

10

10

Residual voltage at In,UreskVpeak

7.60~8.75

9.30~10.4

11.8~12.9

7.73~8.83

8.90~10.1

11.7~12.8

8.90~10.0

2ms duration current impulse, A

250

250

250

250~400

250~400

250~400

400

4/10us high current impulse current,kA

100

100

100

100

100

100

100

Applied field,according toIEC 60099-4

10kA for distribution and IEC class 1   for station



Parameters/Type

Φ44×31

Φ48×25

D50H22

Φ53×24.5

Φ53×31

Φ53/26×25

D55H25

Diameter,mm

44±0.5

48.7±0.5

49.8±0.5

52.8±0.5

52.8±0.5

52.0±0.5

55.2±0.5

Height,mm

31±1

25±1

22±1

24.5±1

31±1

25±1

25±1

Rated voltage Ur,kV

4.50

3.50

3.00

3.50

4.50

4.50

3.50

UMCOV,kV,r.m.s.

3.60

2.85

2.40

2.85

3.60

3.60

2.85

U1mA D.C.,kV

6.70±0.3

5.30±0.3

4.40±0.3

5.20±0.3

6.70±0.3

6.00±0.5

5.30±0.3

Nominal discharge current,In,kA peak

10

10

10

10

10

10

10

Residual voltage at In,UreskVpeak

11.6~12.6

9.05~10.1

7.35~8.46

9.00~10.0

11.4~12.5

9.5~12.0

8.80~10.0

2ms duration current impulse, A

400

450~550

500~600

600

600

400

700

4/10us high current impulse current,kA

100

100

100

100

100

100

100

Applied field,according toIEC 60099-4

10kA for distribution and IEC class 1,2   for station



Parameters/Type

Φ60×25

Φ60×31

Φ62×22

Φ62×25

Φ71×22.5

Φ71/26×22.5

Φ76×22

Diameter,mm

60.4±0.5

60.4±0.5

62.5±0.5

62.5±0.5

71±0.5

71±0.5

76±0.7

Height,mm

25±1

31±1

22±1

25±1

22.5±1

22.5±1

22±1

Rated voltage Ur,kV

3.50

4.50

3.00

3.5

3.00

3.00

3.00

UMCOV,kV,r.m.s.

2.85

3.60

2.40

2.85

2.40

2.40

2.40

U1mA D.C.,kV

5.30±0.3

6.70±0.3

4.40±0.3

5.3±0.3

4.40±0.3

4.40±0.3

4.30±0.3

Nominal discharge current,In,kA peak

10

10

10

10

10

10

10

Residual voltage at In,UreskVpeak

8.80~9.85

11.2~12.2

7.15~8.30

8.70~9.70

7.10~8.20

7.20~8.30

6.75~7.85

2ms duration current impulse, A

800

800

800

800

1000

600~800

1000~1200

4/10us high current impulse current,kA

100

100

100

100

100

100

100

Applied field,according toIEC 60099-4

IEC class 2,3 for station

IEC class 3 for station











Parameters/Type

Φ85×22.5

D95H22.5

Φ115/42×22.5

D136H22.5

Diameter,mm

85.3±0.5

94.5±0.5

115±0.5

135.5±1

Height,mm

22.5±1

22.5±1

22.5±1

22.5±1

Rated voltage Ur,kV

3.00

3.00

3.00

3.00

UMCOV,kV,r.m.s.

2.40

2.40

2.40

2.40

U1mA D.C.,kV

4.40±0.3

4.30±0.3

4.40±0.3

4.30±0.3

Nominal discharge current,In,kA peak

10

10

20

20

Residual voltage at In,UreskVpeak

6.90~7.90

6.55~7.70

7.10~8.00

6.70~7.85

2ms duration current impulse, A

1200~1500

1500~1800

2000~2500

2500~3000

4/10us high current impulse current,kA

100

100

100


Applied field,according toIEC 60099-4

IEC class 3,4 for station

IEC class 4,5 for station



·  The company reserves the right to modify the parameters of the products at any time without prior notice.

·  We can provide MOV according to customer requirements.
