10kV Polymer-housed Surge Arrester
  • 10kV Polymer-housed Surge Arrester
  • 145527
10kV Polymer-housed Surge Arrester
2019-06-15 15:52 Clicks: 4954

Product introduction

Surge arrester is also called overvoltage protector. It is connected in parallel with the protected electrical equipment. It can limit various overvoltage on electrical equipment, such as lightning overvoltage, operating overvoltage, etc., so as to protect the high voltage electrical from the damage of overvoltage.

Metal-oxide varistor is used as the core component of surge arrester. The conductive mechanism of varistors is based on the non-linear volt-ampere characteristics of Schottky barrier model. The arrester is based on the principle of the non-linear volt-ampere characteristic of metal  oxide varistor, which makes the arrester hold high resistance under the normal operating voltage of power system, which is equivalent to an insulator, and will not interfere with the normal operation of power system. When the overvoltage of power system endangers the safe operation of the system, the varistor triggers instantaneously and presents a low resistance. Forming a channel, release overvoltage energy, and clamp system overvoltage within the allowable range of the system to ensure the safe operation of the power system.

The arrester is polymer-housed surge arrester. It has the advantages of high current impulse withstand capacity, large protection margin, strong anti-fouling ability, small size, light weight and convenient installation.


Product Details

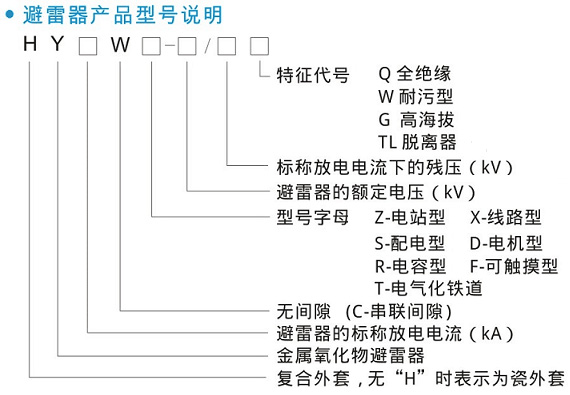

Type designation

Rated Voltage

Continuous operating   voltage

Min. reference voltage   at D.C. 1mA

Lightning impulse   residual voltage 8/20 µs

2ms rectangular   current withstand

4/10 µs

high current impulse   withstand

kV

kV

kV

kV

A

kA

HY5WS-10/30

10

8

15

30

150

65

HY5WS-17/50

17

13.6

25

50

150

65

HY5WZ-10/27

10

8

14.4

27

150

65

HY5WZ-17/45

17

13.6

24

45

150

65

HY5WR-10/27

10

8

14.4

27

400

65

HY5WR-17/45

17

13.6

24

45

400

65

HY5WD-8/18.7

8

6.3

11.2

18.7

400

65

HY5WD-13.5/31

13.5

10.5

18.6

31

400

65

HY5WD-23/51

23

18

31.9

51

400

65

HY2.5WD-8/18.7

8

6.3

11.2

18.7

250

65

HY2.5WD-13.5/31

13.5

10.5

18.6

31

250

65

HY5WZ-51/134

51

40.8

75

134

400

65

HY10WZ-96/232

96

75

140

232

600

100

HY10WZ-100/260

100

78

145

260

600

100

HY10WZ-102/266

102

79.6

148

266

600

100

HY10WZ-108/281

108

84

157

281

600

100

HY10WZ-200/520

200

156

290

520

600

100

HY10WZ-204/532

204

159

296

532

600

100

HY10WZ-216/562

216

168.5

314

562

600

100

Y10WZ-300/727

300

228

425

727

1500

100

Y20WZ-444/1106

444

324

597

1106

2000

100

HY5WT-42/120

42

34

65

120

400

65

HY1.5W-31/85

31

24.8

52

85

400

65

HY1.5W-60/144

60

48

85

144

400

65

HY1.5W-72/186

72

58

103

186

400

65

HY1.5W-96/260

96

77

137

260

400

65

HY1.5W-144/320

144

116

205

320

400

65

HY1.5W-207/440

207

166

292

440

400

65

HY1.5W-0.28/1.3

0.28

0.24

0.6

1.3

100

45

HY1.5W-0.5/2.6

0.5

0.42

1.2

2.6

100

45
